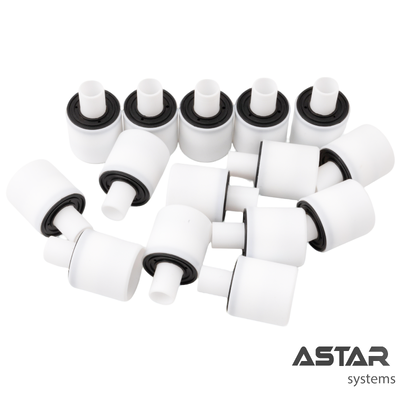

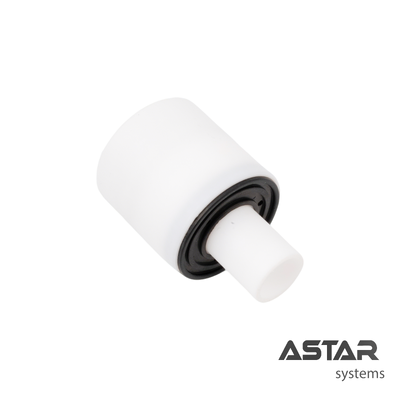

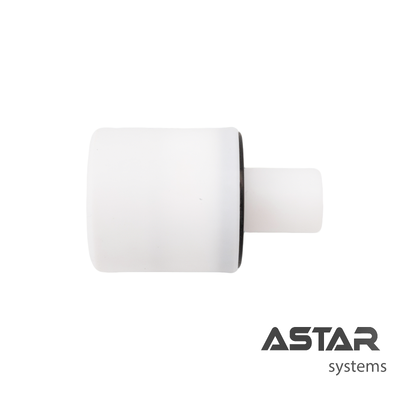

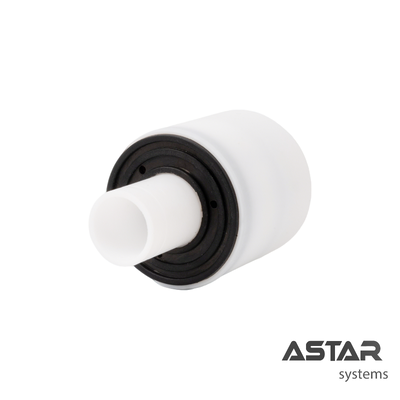

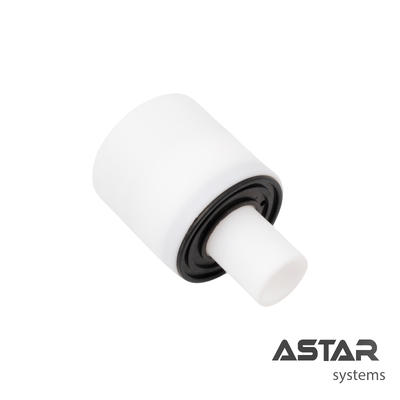

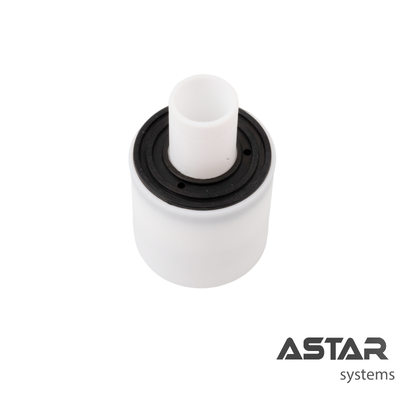

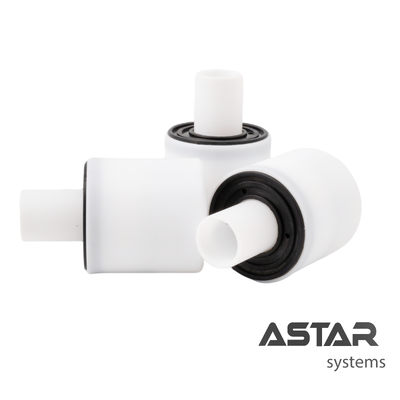

1009429 Fixation Piece NF28-E for GM03 GA03 Powder Coating Gun Nozzle Combinations
Engineered for superior performance and operational efficiency in industrial powder coating applications,
this manual powder gun delivers exceptional results with minimal maintenance requirements.
Product Overview
Designed with minimal replacement parts for easy cleaning and simple maintenance, this powder coating gun
reduces operational costs while ensuring reliability and long service life. The system features an extendable
body design with tube and click connections for versatile applications.
Applications
This compact powder gun incorporates advanced powder coating technology, offering high performance for
machine, reciprocator, or robot-mounted applications. Its lightweight design minimizes energy consumption
while maintaining optimal performance.
Technical Specifications
| Product Name |
Fixation piece |
| Brand |
ASTAR |
| Size |
Standard |
| Company Capability |
Independently Produced |
| Usage |
Powder Coating |
Nozzle Combinations for GA03 / GM03-E
| Item |
Description |
Part Number |
| 1 |
Flat jet nozzle NF28-E - complete |
1009 430# |
| 2 |
Fixation piece NF28-E - complete |
1009 429# |
| 3 |
Flat jet nozzle set (without pos. 5.1) |
404 225# |
| 4 |
Contact ring |
318 760# |
| 5 |
Electrode holder - complete (ETFE) |
404 209# |
| 5.1 |
Electrode holder - complete (PTFE) |
406 058# |
| 6 |
Flat jet nozzle |
404 128# |
| 7 |
Threaded sleeve PU04-E-NF - complete |
405 728 |
| 10 |
Round jet nozzle NS11-E - complete |
1009 440# |
| 11 |
Deflector rod NS11-E - complete |
1002 249# |
| 12 |
Muzzle NS11-E - complete |
1009 439# |
| 13 |
Threaded sleeve PU04-E-NS - complete |
405 736 |
| 14 |
Deflector - Ø 15 mm |
400 262# |
| 14.1 |
Deflector - Ø 24 mm |
400 181# |
| 14.2 |
Deflector - Ø 28 mm |
400 254# |
| 14.3 |
Deflector - Ø 32 mm |
400 238# |
| 14.4 |
Deflector - Ø 50 mm |
400 246# |
| 20 |
Extension PE08-E-150 - complete, 150 mm |
1010 501# |
| 20.1 |
Extension PE08-E-300 - complete, 300 mm |
1010 502# |
Product Images
Key Advantages
- Premium materials and reliable technology
- Sturdy construction for extended service life
- Excellent quality with competitive pricing
- Easy installation and maintenance
Packaging
Paper box packaging for secure transportation and storage.
Manufacturer Information
Astar Machinery Co., Ltd. specializes in electrostatic spraying equipment including electrostatic dust
elimination systems, flocking machines, powder and liquid spray machines, high voltage modules, control
cabinets, and complete coating systems.
One-stop Service Provider for Electrostatic Powder Coating Supply Chain
Cangzhou Astar Machinery Co., Ltd. has been deeply engaged in the electrostatic powder coating field for
more than 20 years, with full-chain supply chain services as the core. We integrate key links including
production line design, processing, installation, commissioning, maintenance, as well as equipment and
spare parts supply.
Company Departments
- Technical Department: 7-member core technical team led by senior engineer with over 20 years of industry experience. Each production line design includes 3D flowcharts and animation simulations for precision control.
- Foreign Trade Department: 5-member professional team serving Europe, America, Middle East, Russia, Southeast Asia and Africa markets with rich international experience.
- Production Department: 5-member lean team focused on coating equipment installation, spare parts production and performance testing following strict production standards.
- After-sales Service Department: 2-member dedicated team providing full-process tracking and efficient problem resolution.
From customized production line design to equipment installation and commissioning, from original spare parts
supply to long-term operation and maintenance support, we help customers optimize the coating production
process and enhance core competitiveness with professional and comprehensive one-stop services.
